Standard Specifications
Page 1, 2, 3, 4, 5, 6, 7

Model

HED-0603

HED-1505

HED-2010

HED-3520

HED-5020

HED-5040

HED-200166

HF Output

6kW

15kW

20kW

35kW

50kW

50kW

200kW

Tube cooling system

Air

Water

Water

Water

Water

Water

Water

Vacuum chamber

SBK-1318

SBK-1427

SBK-1640

SBK-2050

SBK-2050

SBK-2640

Rectanglar type

Chamber Capability (cubic m)

0.8

1.4

3.2

6.6

6.6

12

43

Effective capacity (mm)

800*1800
*600

850*2700
*600

900*4000
*900

1200*5000
*1100

1200*5000
*1100

1500*6000
*1350

960*6000
*1950*4

Dry-wood compression unit

option

option

option

option

option

option

non

Electrode lifter

option

option

option

option

option

option

non

Power supply

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

3-phase 200V 50/60Hz

Max. power consumption

20kVA

41kVA

59kVA

93kVA

127kVA

128kVA

380kVA

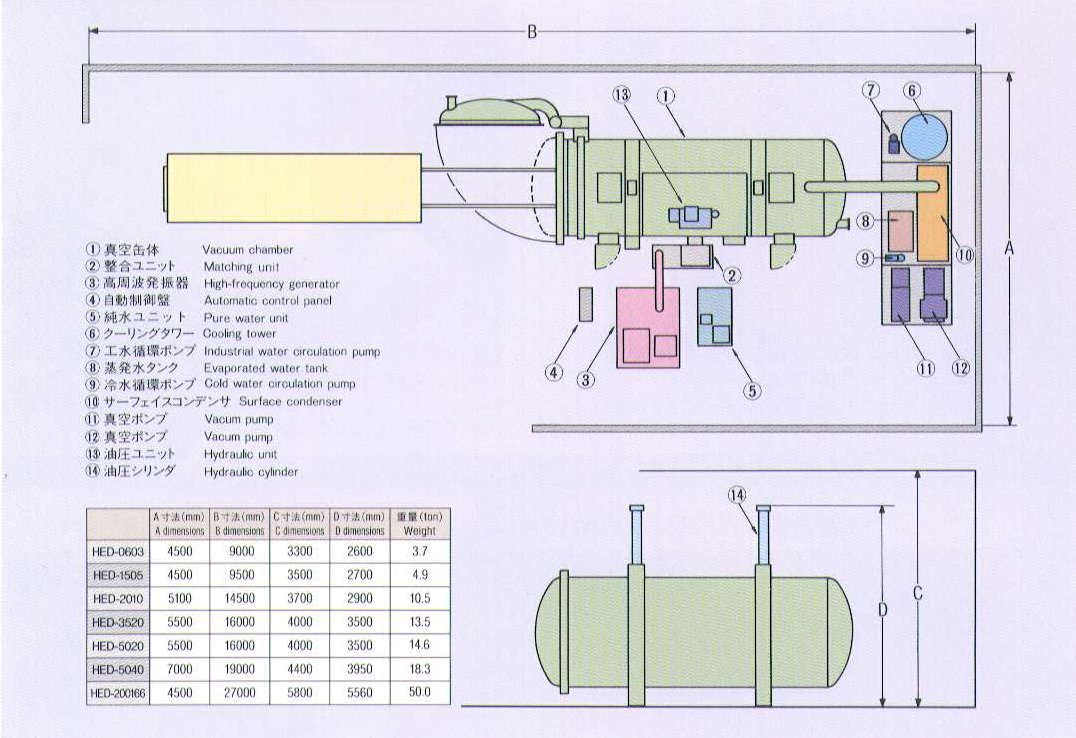

System Layout

Photograph of system

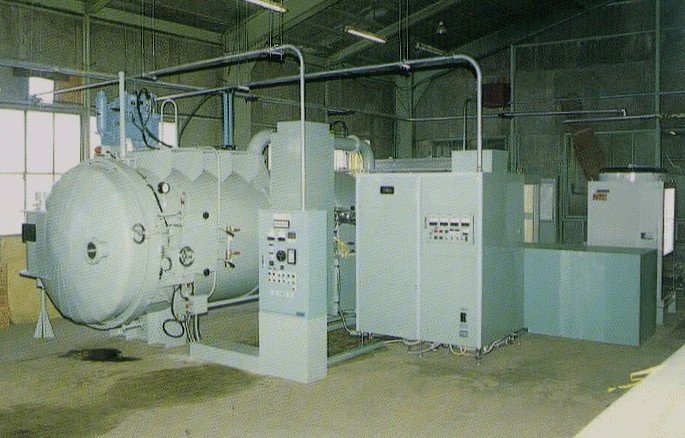

HED-3510

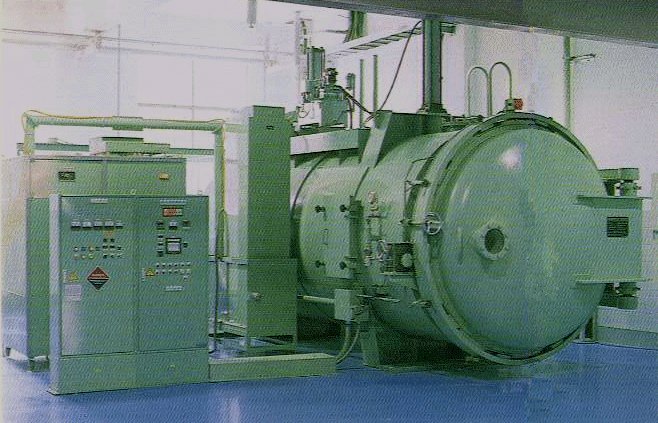

HED-5020

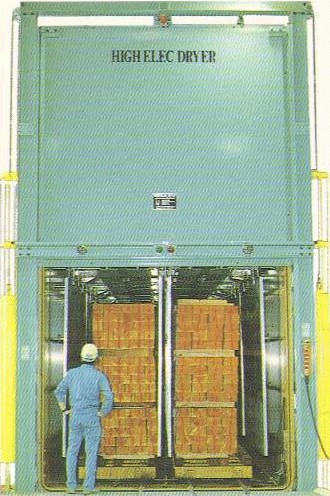

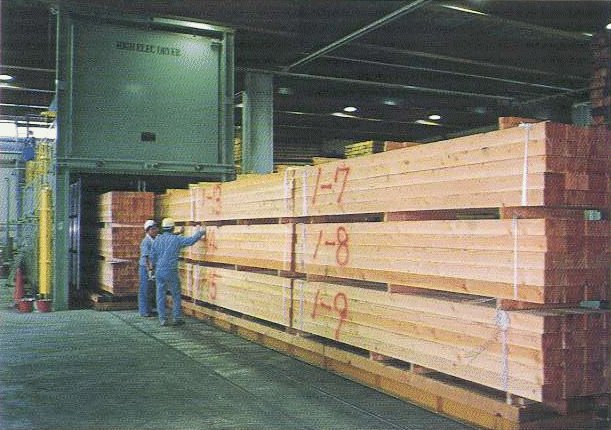

HED-200166_1 HED-200166_2
